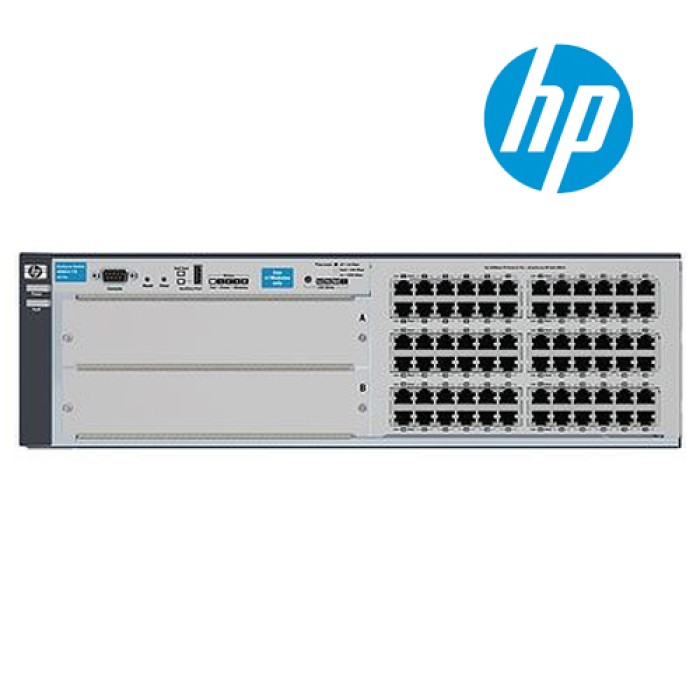

*** Switch HP Procurve 4202vl-72 72 Porte 10/100 RJ45 J8772 ***
La serie di switch HP 4200 vl è costituita da chassis modulari che offrono una soluzione LAN flessibile ed economica, alternativa agli stackable. Questi switch offrono un formato di chassis collaudato e affidabile di qualità elevata in soluzioni scalabili 10/100, 10/100/1000 e 10 Gigabit che si integrano facilmente in qualunque rete.
Alimentazione100-127 VAC/200-240 VAC; 50/60 Hz
Altitudine di funzionamento (imperiale)up to 15000 ft.
Amministrazione remotacommand-line interface; Web browser; configuration menu; out-of-band management (DB-9 serial port console)
Emissioni elettromagneticheFCC Class A; VCCI Class A; EN55022/CISPR-22 Class A; CISPR22 Class A; EN55024; IEC/EN61000-3-2; IEC/EN61000-3-3
Immunità elettromagneticaEN 55024, CISPR 24; IEC 61000-4-2; IEC 61000-4-3; IEC 61000-4-4; IEC 61000-4-5; IEC 61000-4-6; IEC 61000-4-8; IEC 61000-4-11; EN 61000-3-2, IEC 61000-3-2; EN 61000-3-3, IEC 61000-3-3
LatenzaLatency: < 6 µs (FIFO)
Livello di gestioneHP PCM+; HP PCM (included);
Memoria e processoreFabric: Motorola PowerPC MPC8245 @ 330 MHz, 24 MB flash, packet buffer size: 36 MB, 64 MB SDRAM
MontaggioMounts in an EIA-standard 19 in. telco rack or equipment cabinet (hardware included); horizontal surface mounting only.
Organizzare nome prodottoHP ProCurve Manager Plus; HP ProCurve Manager (included)
Peso10 kg
Fully loaded23.81 lb. lb
Piattaforma di gestioneHP PCM+; HP PCM (included);
Porte I/O2 open module slots; 72 auto-sensing 10/100 ports(IEEE 802.3 Type 10Base-T, IEEE 802.3u Type 100Base-TX), Media Type: Auto-MDIX, Duplex: half or full; Supports a maximum of 120 auto-sensing 10/100 ports or 48 Gigabit ports or 8 mini-GBICs or 2 10-GbE ports, or a combination
Protocolli supportatiGeneral protocols
HTML and telnet management
IEEE 802.1AB Link Layer Discovery Protocol (LLDP); RFC 1757 RMON 4 groups: Stats, History, Alarms and Events; RFC 2819 Four groups of RMON: 1 (statistics), 2 (history), 3 (alarm) and 9 (events); RFC 3164 BSD syslog Protocol; RFC 3176 sFlow; ANSI/TIA-1057 LLDP Media Endpoint Discovery (LLDP-MED); SNMPv1/v2c/v3; XRMON
Network management
MIBs
Device management
IP multicast
IEEE 802.1D MAC Bridges; IEEE 802.1p Priority; IEEE 802.1Q VLANs; IEEE 802.1s Multiple Spanning Trees; IEEE 802.1w Rapid Reconfiguration of Spanning Tree; IEEE 802.3ad Link Aggregation Control Protocol (LACP); IEEE 802.3x Flow Control; RFC 768 UDP; RFC 783 TFTP Protocol (revision 2); RFC 791 IP; RFC 792 ICMP; RFC 793 TCP; RFC 826 ARP; RFC 854 TELNET; RFC 1542 BOOTP Extensions; RFC 2030 Simple Network Time Protocol (SNTP) v4; RFC 3046 DHCP Relay Agent Information Option
Security
RFC 1213 MIB II; RFC 1493 Bridge MIB; RFC 2613 SMON MIB; RFC 2618 RADIUS Client MIB; RFC 2665 Ethernet-Like-MIB; RFC 2668 802.3 MAU MIB; RFC 2737 Entity MIB (Version 2)
QoS/Cos
RFC 2474 DiffServ Precedence, including 8 queues/port; RFC 2597 DiffServ Assured Forwarding (AF); RFC 2598 DiffServ Expedited Forwarding (EF)
IEEE 802.1X Port Based Network Access Control; RFC 2138 RADIUS Authentication; Secure Sockets Layer (SSL); SSHv2 Secure Shell
RFC 3376 IGMPv3
Slot disponibili per alimentazione1
Tecnologia di connessioneWired
Tipo alimentazione1 x J4839A
Velocità di trasferimento dati10 Mbit/s
Velocità switch fabric33.6 Gbps
